Item No.:12125
EAN:4260195434332

LUPUS - Sensor input (9 times)

189,00 EUR
TVA INCLUS
En stock
12V Power supply:
Description

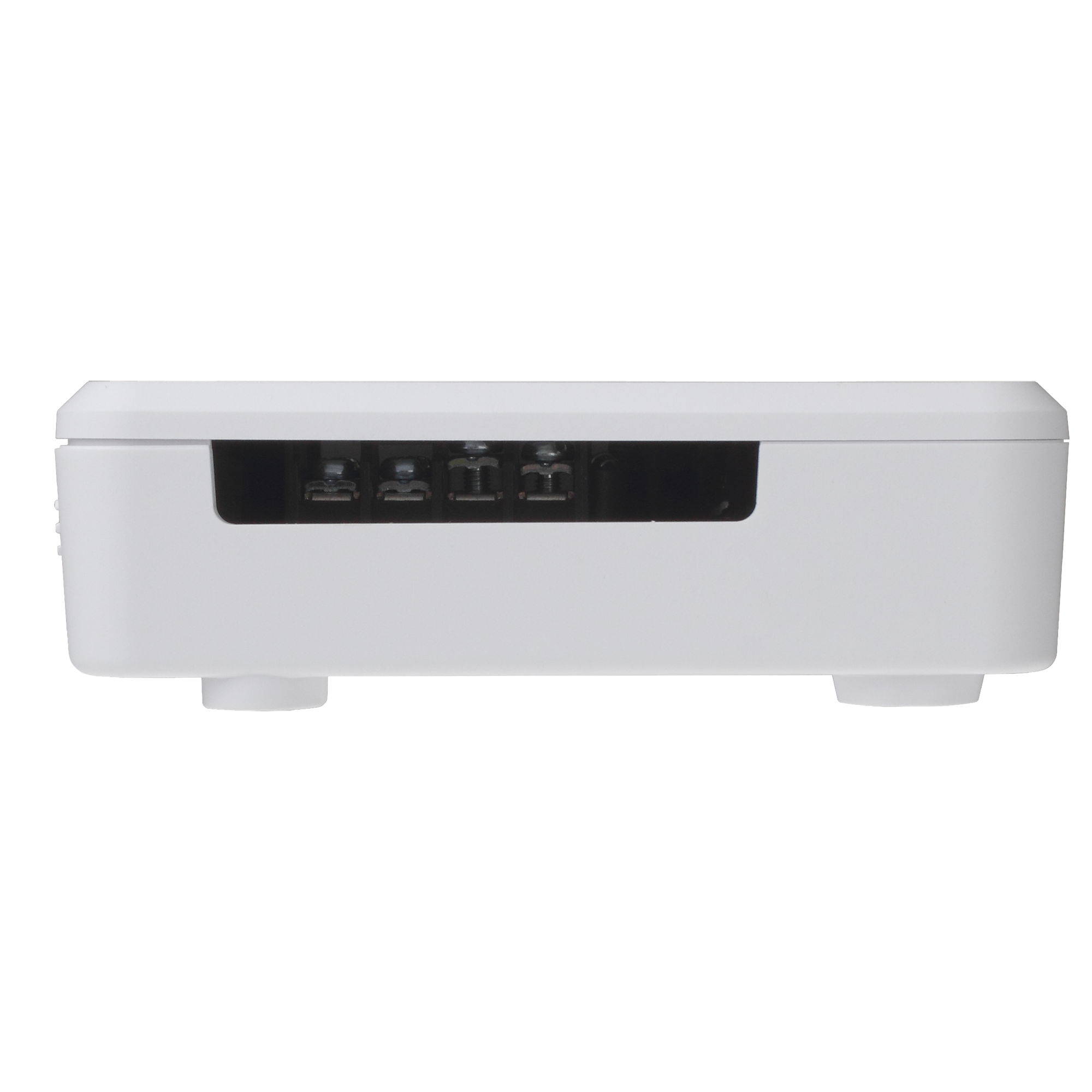

LUPUS - sensor input (9 fold)


The LUPUS wireless input (9 fold)
The LUPUS - sensor input (9 fold) features nine dry contacts for up to 9 alarm circuits or individual sensors. If one of the connected sensors triggers an alarm, the sensor inputs forwards it to our XT alarm panel. Hence, the sensor input allows you to use your existing wired door contacts, wired motion detectors, your BUS system or other similar wired devices with our XT alarm panel. Of course, you can connect multiple sensors in a line to one of the inputs. The webUI of the XT alarm panel allows you to give each input an individual name (e.g. door contact(s), smoke detector(s)).

Please note: A separate mains adapter is required, see dropdown menu above.
LUPUSEC XT2 Smarthome Alarmanlage
The LUPUSEC alarm system
Broad expandability - The LUPUSEC alarm system:
We offer a wide variety of sensors and accessories that you can control and program in your smart home alarm system. You can integrate door contacts, IP cameras, motion detectors, mechanical and magnetic locks, shutter relays, and heating controls with just a few easy clicks to your smart home alarm panel.
Feuille

LUPUS - Sensor input (9 times)

Technical data:

Dimensions 105 x 30 x 163 mm (LxWxH)
4.13 x 1.18 x 6.41 inches (LxWxH)
Detection method Potential-free contact
Resistance 30 Ohm
Tampering protection Yes, against removal
Tampering protection displayed in the alarm panel Yes
Status checked and displayed by the alarm panel Yes
Radio frequency 868,6625 MHz
Radio performance max. 10mW(10dBm)
Transmission range approx. 30 to 100m (32 to 109 yards) depending on the local conditions
Modulation FM
Mounting options Screwing, gluing
Power supply 12V 1A mains adapter (not included) and a rechargeable emergency battery for approx. 72 hours
Place of installation any
only indoors
Conforms to the following standards CE, FCC, RoHs, EN 14604
Compatible with XT alarm panel XT1 Plus, XT2, XT2 Plus, XT3, XT4

Includes:

Sensor input (9 fold)
Screws and dowels Manual
