Description

LUPUS - Door contact Pro


Türkontakt in weiß
LUPUS Door contact Pro
Wireless door contact for your LUPUS smart home alarm panel

The LUPUSEC - door contact is an integral part of your alarm system and is used to secure your doors and windows.

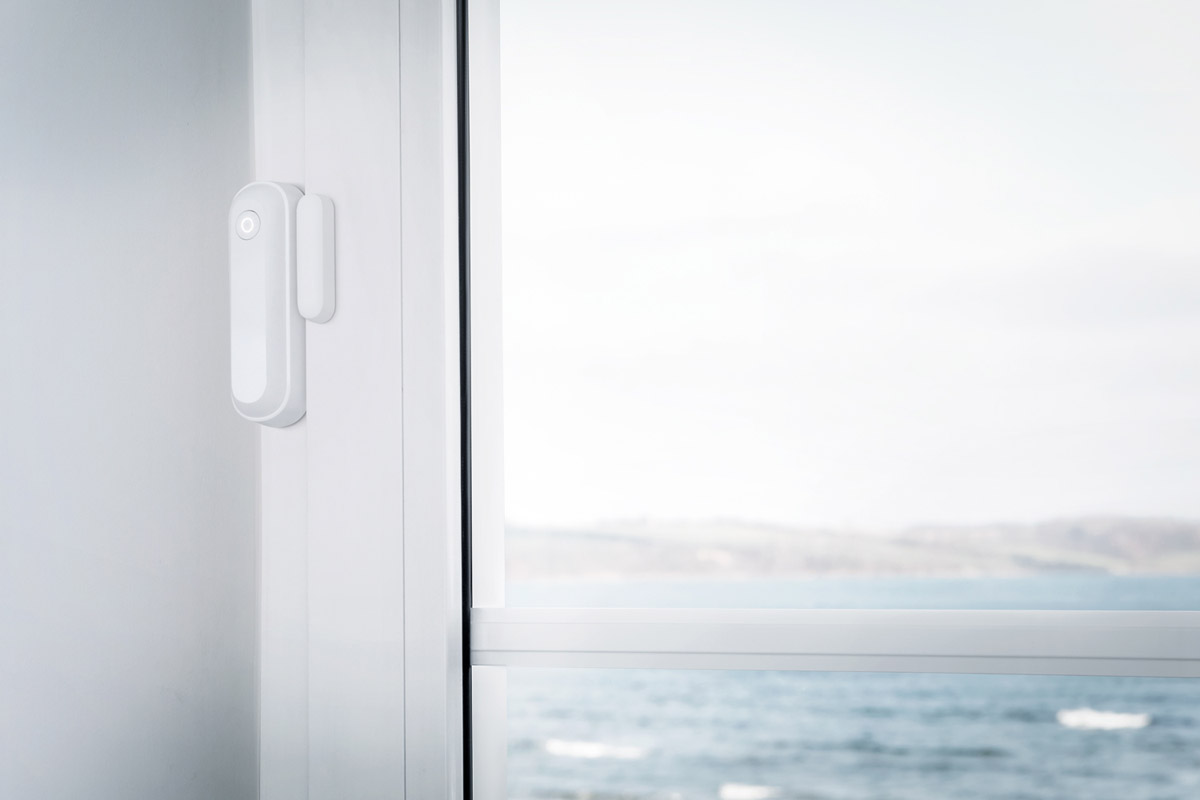

The contact consists of two parts: one is fixed at your door or window frame, the other one is fixed at the wing of the door or window sash. Thus, the contact recognises if the door or window is opened or closed. If you install the door contact at the bottom of your window, it is still possible to tilt your window.

You can integrate as many door and window contacts into your XT system as you need (the XT1 Plus features 80 sensor slots, the XT2 up to 240 sensor slots). The door contact is battery powered and connects wirelessly to your XT alarm panel. Hence, you do not need to hassle with any wiring. Simply install the two elements of the door contact and connect them wirelessly with the alarm panel - it's as simple as that!



Fenstertürkontaktanzeige im WebUI
Always informed – the web interface of the XT2 Plus
Fast installation, easy automatization!

Once connected to your XT alarm panel, the door contact sends every status change to the alarm panel. This includes a notification in case of low battery, if the tampering protection at the back of the sensor is triggered, and when the window or door is opened or closed.

Thus, you can create various home automation rules that are triggered if you open a specific door or window. Do you want to automatically switch on the light when you enter your bath at night? Do you want to turn down the heating when you open a window? No problem – the intuitive web interface allows you to quickly create rules like these.



LUPUSEC XT2 Smarthome Alarmanlage
The LUPUSEC alarm system
Broad expandability - The LUPUSEC alarm system:
We offer a wide variety of sensors and accessories that you can control and program in your smart home alarm system. You can integrate door contacts, IP cameras, motion detectors, mechanical and magnetic locks, shutter relays, and heating controls with just a few easy clicks to your smart home alarm panel.
Feuille

LUPUS - Door contact V2 Pro (blanc)

Technical data:

Dimensions sensor 86.9 x 27.7 x 21.2mm (LxWxH)
3.42 x 1.09 x 0.83 inches (LxWxH)
Dimensions magnet 46 x 12.2 x 10.3 mm (LxWxH)
1.69 x 0.48 x 0.40 inches (LxWxH)
Weight Sensor: approx. 34 g (1.12 oz)
Magnet: approx. 10g (0.35 oz)
Detection method Magnetic measurement
Sensor type Reading contact
Tampering protection Yes
Tampering protection of the sensors displayed in the web interface Yes
Status display Yes
Status checked by the alarm panel Yes
Status displayed in the alarm panel Yes
Battery status displayed in the alarm panel Yes
Battery status checked in the alarm panel Automatically
Radio frequency 868,6375MHz
Radio performance max. 10mW(10dBm)
Transmission range Max. 2km outdoors without obstacles, inside buildings between 30-300 metres.
Modulation FM
Mounting options Screwing or gluing
Power supply 3V CR123 lithium battery
Average battery life 5 years (at approx. 10 uses a day)
Place of installation Window, door, etc.
Only indoors
Conforms to the following standards CE, FCC, RoHs, EN 50131 Grade 2
Compatible with XT alarm panel XT4

Includes:

Door contact (2-parts) Battery
Screws and dowels Adhesive tape
Manual
