LUPUSEC - Dual way motion detector
LUPUSEC - Dual way motion detector
LUPUSEC - Dual way motion detector
LUPUSEC - Dual way motion detector
LUPUSEC - Dual way motion detector
LUPUSEC - Dual way motion detector
LUPUSEC - Dual way motion detector
LUPUSEC - Dual way motion detector
LUPUSEC - Dual way motion detector
LUPUSEC - Dual way motion detector
Item No.:12034

LUPUSEC - Dual way motion detector

199,00 EUR
On stock
  • Funkübertragung
  • Integrierte Infrarot-Beleuchtung
  • Batteriebetrieb möglich

LUPUSEC - Dual way motion detector

Dual Way Bewegungsmelder
Enhanced security – the dual way motion detector
The dual way motion detector for your LUPUSEC smart home alarm panel

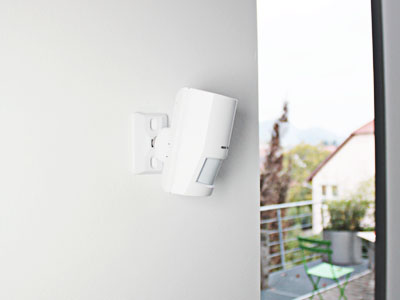

The LUPUSEC-XT dual way motion detector monitors the temperature field and the microwave field. Only if a movement is registered in both fields, an alarm will be triggered. Hence, this motion detector alarms you dependably if movements take place and it can even be used in rooms with floor heating and in winter gardens. Simply install the motion detector at the location you want to secure.

If installed correctly, in a height of approx. 2 meters (6.5 feet), the motion detector registers any movement up to a range of 12 meters (13 yards). The angle of vision of this motion detector is 110°.

Like our other alarm sensors, the dual way motion detector is battery powered, features a tampering protection at its back, and is connected wirelessly to your alarm panel. Thus, you can simply screw it against any wall or ceiling of your choice. A mount with ball-and-socket joint and mounting material is included. Since the dual way motion detector is wireless, you do not need to hassle with any wiring: Simply install the motion detector and connect it wirelessly with the alarm panel – it’s as simple as that!

Veränerung des Temperaturfeldes
Always informed – the web interface of the XT2 Plus
Fast installation, easy automatization!

Once connected to your XT alarm panel, the PIR motion detector sends every status change to the alarm panel.

This includes a notification in case of low battery, if the tampering protection at the back of the sensor is triggered, and when a motion is detected. Thus, you can create various home automation rules. Do you want to automatically switch on the light when you enter your bath at night? No problem – the intuitive web interface allows you to quickly create such a rule.

LUPUSEC XT2 Smarthome Alarmanlage
The LUPUSEC alarm system
Broad expandability - The LUPUSEC alarm system:
We offer a wide variety of sensors and accessories that you can control and program in your smart home alarm system. You can integrate door contacts, IP cameras, motion detectors, mechanical and magnetic locks, shutter relays, and heating controls with just a few easy clicks to your smart home alarm panel.
Tech. Data

LUPUSEC - Dual way motion detector

Technical data*:

Horizontal angle of vision 110°
Dimensions 60 x 113 x 63 mm (2.3 x 4.4 x 2.4 inch) (DxHxW)
Weight 0.140 kg (0.3 pounds)
Detection method Thermal field measurement
Microwave field measurement
Sensortype PIR + microwave pulse doppler
Optimal installation height 1.9 - 2m (1.9 - 2.1 yards)
Microwave frequency 10.525 GHz
Working environment -10°C bis +45°C (14F - 113F) (only indoors)
Tampering protection Yes
Tampering protection of the sensors displayed in the web interface Yes
Status checked by the alarm panel Yes
Status displayed in the alarm panel Yes
Battery status displayed in the alarm panel Yes
Battery status checked in the alarm panel Automatically
Radio frequency 868,6625 MHz
Radio performance max. 10mW(10dBm)
Transmission range Approx. 30 to 100m (32 to 109 yards)
Modulation FM
Mounting options Screwing or in 1.9 - 2m (1.9 - 2.1 yards) height
Power supply CR123A 3V lithium batteries
Average battery life 3 years
Place of installation Walls, in corners, etc.
Only indoors
Conforms to the following standards CE, FCC, RoHs
Compatible with XT alarm panel XT1, XT1 Plus, XT2, XT2 Plus, XT3, XT4


Dual way motion detector Batteries
Screws and dowels Corner mount
*Information without guarantee Errors and changes reserved

Datenblatt - LUPUSEC Dual Way Bewegungsmelder
309 KB
LUPUSEC - Dual Way Bewegungsmelder - Datenblatt
Konformitätserklärung - Dual Bewegungsmelder
41 KB
Konformitätserklärung - Dual Bewegungsmelder
Frequently Asked Questions

Why does the alarm panel still display low battery after I have changed the batteries of a sensor?

When you change the batteries, we advice to discharge any residual voltage. Press the learn button of the sensor a few times before instering the new batteries.

last updated - 03/22/2017
