LUPUSEC - Keypad V2
LUPUSEC - Keypad V2
LUPUSEC - Keypad V2
LUPUSEC - Keypad V2
LUPUSEC - Keypad V2
LUPUSEC - Keypad V2
Item No.:12106
EAN:4260195433892

LUPUSEC - Keypad V2

109,00 EUR
INCL. VAT
On stock
Description

LUPUSEC - XT Keypad V2


Alarmsystem von ueberall steuern
The LUPUSEC Keypad!
The Keypad allows you to control your smart home alarm panel
The LUPUSEC-XT Keypad allows you to control, arm, and disarm your alarm panel. The keypad is battery powered and connects wirelessly to your XT alarm panel. Hence, you do not need to hassle with any wiring. Simply install the keypad and connect it wirelessly with the alarm panel - it's as simple as that!


lupusec smart home funktionen
Huge functionality
Easy control of users and pin codes:
Depending on which PIN code you use, you can control both areas of your alarm panel. In the web interface of your alarm panel, you can create up to 50 PIN codes per area and assign them with a name and certain rights. Hence, you can always check in the logs when and by whom a code was used. Security anytime and anywhere - with the free APP and push notifications.


LUPUSEC XT2 Smarthome Alarmanlage
The LUPUSEC alarm system:
Broad expandability - The LUPUSEC alarm system:
We offer a wide variety of sensors and accessories that you can control and program in your smart home alarm system. You can integrate door contacts, IP cameras, motion detectors, mechanical and magnetic locks, shutter relays, and heating controls with just a view easy clicks to your smart home alarm panel.

Tech. Data

LUPUSEC - Keypad V2

Technical data:

Dimensions 115 x 80 x 20mm (4.52 x 3.14 x 0.78 inch) (HxWxD)
Weight 0.14 kg (0.3 pounds)
Access option 4-digit pin code

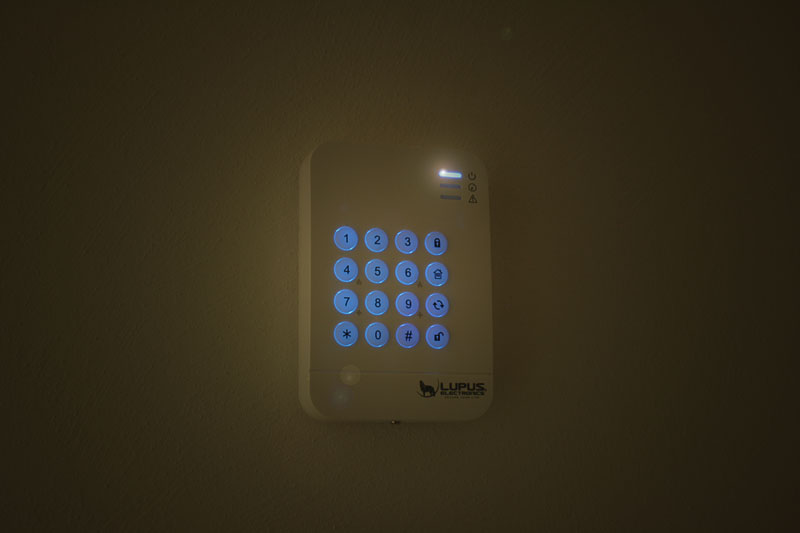

Lighting Yes, blue
Tampering protection Yes
Tampering protection displayed in the web interface Yes
Status display Yes
Status checked by the alarm panel Yes
Status displayed in the alarm panel Yes
Battery status displayed in the alarm panel Yes
Battery status checked in the alarm panel Automatically
Radio frequency 868,6625 MHz
Radio performance max. 10mW(10dBm)
Transmission range Approx. 30 to 100m (32 to 109 yards) depending on the local conditions
Modulation FM
Mounting options Screwing
Power supply CR123 3V
Average battery life 4 years
Place of installation Wall
Only indoors
Conforms to the following standards CE, FCC, RoHs, EN 50131 Grade 2
Functions Toggle arm-, disarm-, and home mode, silent-, fire-, and medical alarm, check alarm panel status
Working environment -10°C to 45°C (14F to 113F)
Air humidity Max. 85%
Encryption Rolling Code
Compatible with XT alarm panel XT1 Plus, XT2, XT2 Plus (Rolling Code Firmware installed), XT3, XT4

Includes:

Keypad Batteries
Screws and dowels Manual
Downloads
Designation
Type
Size
Date
Description

Datenblatt - LUPUSEC Keypad V2
PDF
179 KB
25.1.2022
Datenblatt - LUPUSEC Keypad V2
Konformitätserklärung - Keypad V2
PDF
233 KB
23.12.2021
Konformitätserklärung - Keypad V2
FAQ
Frequently Asked Questions

Why can't I add my new V2 control units to my alarm panel?

In order to be able to install the new V2 control units, you need to install the latest firmware (at least version 0.0.2.17) and the sensor firmware 35E that is included in the firmware file.

last updated - 05/27/2019
