junction box type B
junction box type B
junction box type B
junction box type B
Item No.:13350
EAN:4260195433465

junction box type B

34,90 EUR
INCL. VAT
On stock
Description
The LUPUSNET HD - junction box allows you to store all cables of the LE338 neatly and securely in the inside of the box. The cables are lead directly from the base of the camera into the Junction Box without being exposed to external weather conditions. The Junction Box consists of high quality aluminium and is screwed directly to the base of your camera. Thus, the cables of your camera are neatly protected from the weather and from tampering.
Tech. Data

junction box type B

Material Aluminium

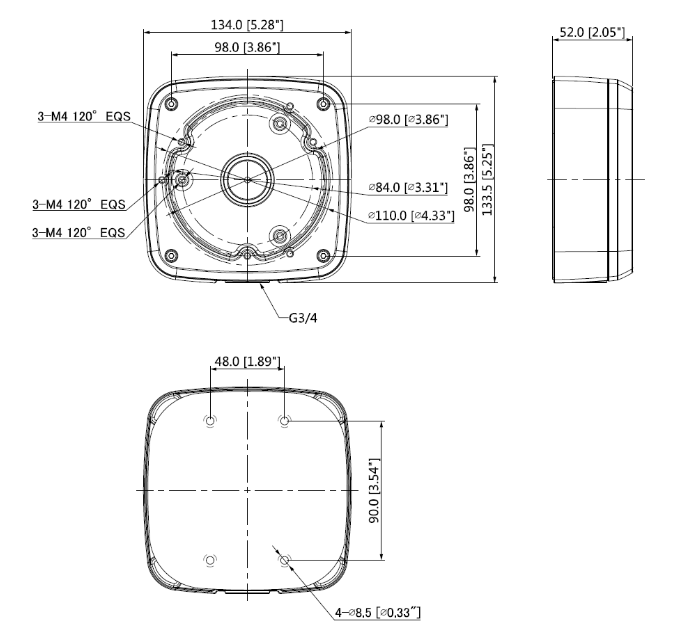

Dimensions (L x W x H) 134mm x 134mm x 51mm
Working environment -40ºC~60ºC (-40F ~ 140F)
Humidity 0~90% RH
Max. holding load 3.0Kg
Weight 0.67Kg
Colour White
Not suited for already crimped cables
Downloads
Designation
Type
Size
Date
Description

Datenblatt - Montagebox Type B
PDF
101 KB
28.1.2020
Datenblatt - Montagebox Type B
