EAN:4260195435834
LUPUS - LE213 WLAN
- Description
-

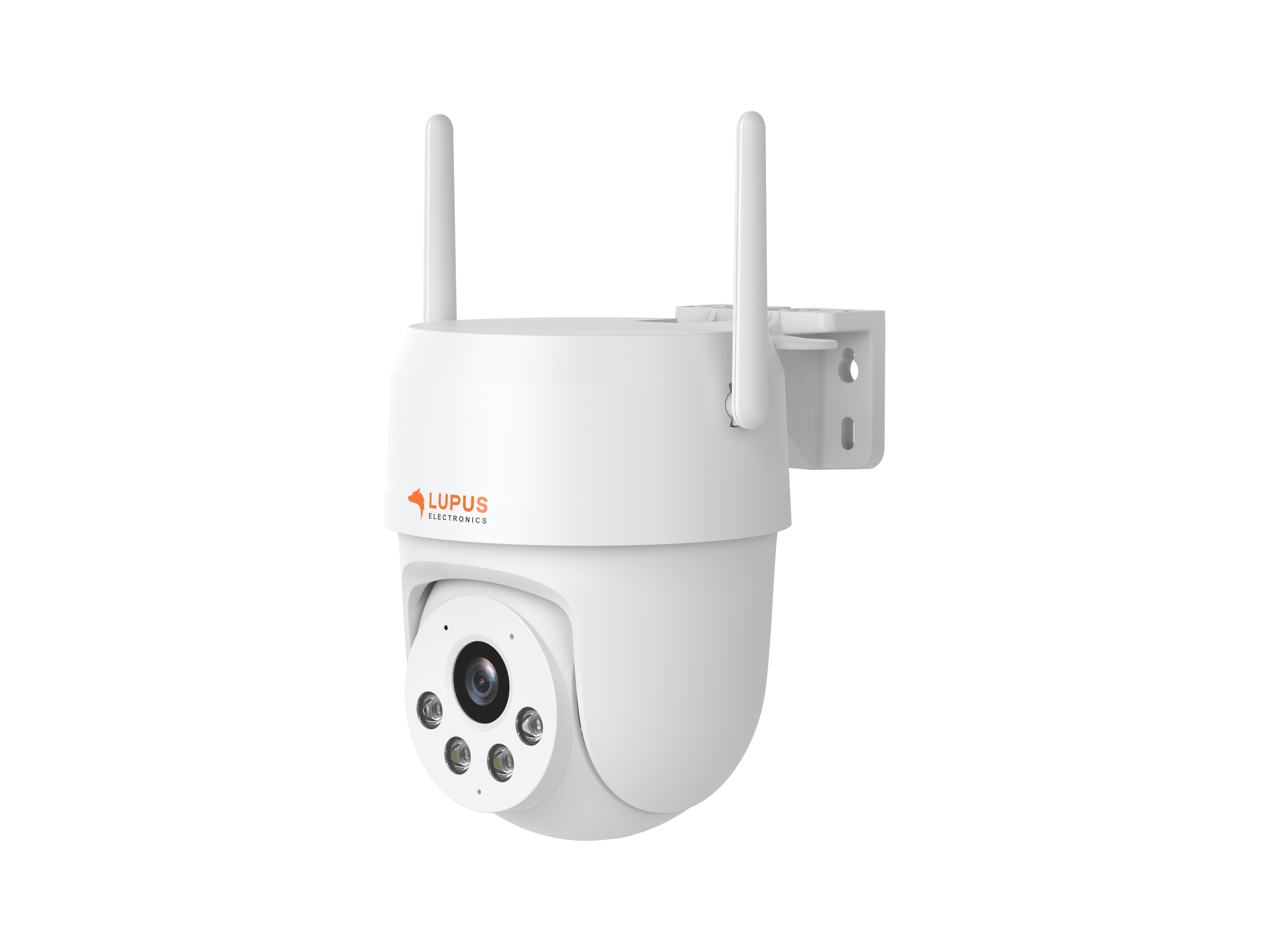

LUPUS - LE213 Alarm Camera
The new LE213 is more than just a surveillance camera—it’s your personal security guard.
Automatic person detection and tracking, intruder addressing, and alarming.
The new LUPUS – LE213 alarm camera combines the well-known strengths of LUPUS IP cameras with a host of new features. It is the first camera to actively protect your property and proactively deter unauthorized entry by addressing intruders. This is made possible in particular by its intelligent motion detection, i.e., the specific and exclusive detection of people.
Instead of merely recording what happens, the LUPUS – LE213 alarm camera actively counters unauthorized entry with three individually configurable escalation steps.
Automatically identify, track, address, and alert on unauthorized persons.
First, an audio announcement makes it clear to unauthorized persons that their actions are unlawful.
If that’s not enough, a second announcement is played and a white floodlight is activated.
In the third step, an alarm is triggered via the siren at around 85 dB.
Listen to a demo of a serious audio announcement
Listen to a demo of an announcement by the action hero
For the audio announcements in steps one and two, you can choose from 22 predefined announcements or upload customized announcements to the camera.

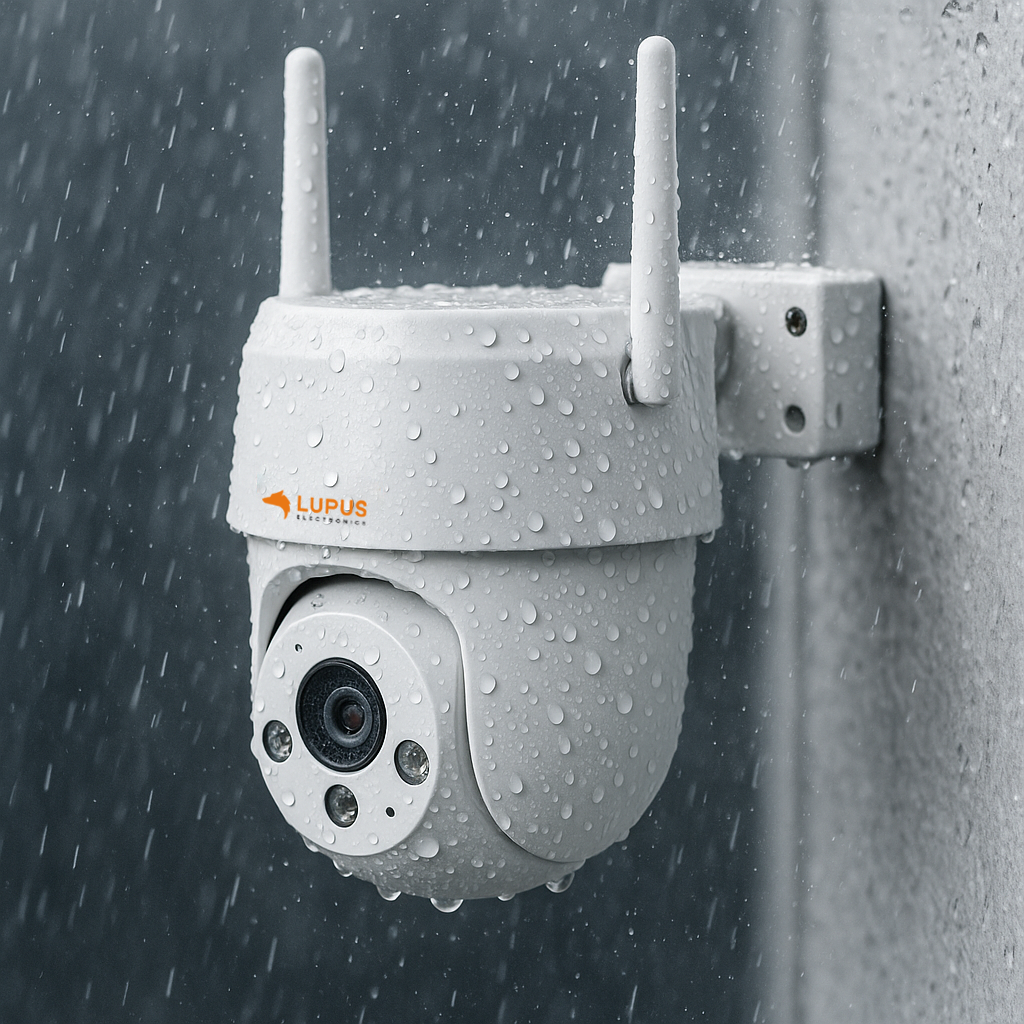

The new LUPUS – LE213 alarm camera features a 3 MP resolution (2304 × 1296 pixels), Wi-Fi 6, an IP66 protection rating for outdoor use, as well as functions such as floodlight, audio announcements, and a siren to actively deter burglars. Thanks to AI detection, people or vehicles can be tracked across a 360° field of view and addressed in a targeted manner. The extremely light-sensitive CMOS also ensures that you still receive a detailed color image from the LUPUS – LE213 alarm camera at just 0.01 lux.
Also unique is the two-way communication with our alarm systems: Activate the cameras’ alarm functions in the event of a break-in (e.g., floodlight, siren, audio announcements, recording, etc.) or in everyday use via a home-automation rule or on a schedule (e.g., turn the light on at night upon detection). Conversely, the camera informs the control panel about events (person/vehicle detection) and triggers a home-automation rule (e.g., the control panel activates the SONOS speakers and starts dog barking).
- Tech. Data
-
LUPUS - LE213 WLAN
Hardware
Image Sensor 1/2.8" CMOS Maximum Resolution 2304 × 1296 (3 MP) Minimum Illumination 0.01 Lux @ F2.0 (color, 30 IRE); 0.001 Lux @ F2.0 (B/W, 30 IRE); 0 Lux (IR/floodlight on) Illumination 2 (IR + flood light) Illumination Range up to 30 m IR; up to 30 m warm light Lens Fixed focal length, 4.0 mm, F2.0 Field of View Horizontal 83°; Vertical 45°; Diagonal 98° Manual Adjustment Pan 0°–345°; Tilt 0°–90°; Rotation 0°–345° Video & Audio
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (substream only) Frame Rates Main stream: 2304×1296 @ 1–25/30 fps
Substream: 640×360 @ 1–25/30 fpsBitrate H.264: 32–6144 kbps; H.265: 32–6144 kbps Day/Night Switching Automatic (ICR) / Color / B/W WDR DWDR Motion Detection On/Off, 4 zones adjustable Image Rotation 0° / 180° Audio Built-in microphone and speaker Audio Compression G.711a; G.711Mu; PCM Network
Network Interface RJ-45 (10/100 Base-T) Wi-Fi IEEE 802.11 a/b/g/n/ac/ax (2.4 GHz & 5 GHz), WI-FI6 Compatibility ONVIF (Profile S, G, T) App Support LUPUS App for iOS and Android Storage
SD Card Slot MicroSD up to 256 GB (not included) Storage Options SD card Product Data
Sound Detection Yes Certifications CE Power Supply 12 VDC (±30 %) Operating Temperature –30 °C to +55 °C Operating Humidity ≤ 95 % (non-condensing) Protection Class IP66 Reset Button Available Housing Material Plastic Dimensions (L × W × H) 125.4 × 110 × 140.3 mm Weight 0.4 kg Scope of Delivery
Camera Manual 12V Power Supply LUPUS SmartVision Software - Downloads
-
DesignationTypeSizeDateDescriptionAktuelles Handbuch - LUPUS LE 202 + LE 204 V3 / LE 213PDF4.27 MB8.10.2025Aktuelles Handbuch - LUPUS LE 202 + LE 204 V3 / LE 213. Version 1.3
- FAQ
-
Frequently Asked Questions - LE 20x / 2xx - How do I integrate the live stream of my camera into my XT alarm panel?
- LE 20x / 2xx - Activate or deactivate the motion detection schedule for your camera via your XT alarm panel.
- LE 213 - How do I save specific camera positions (preset positions)?
- LE 213 - What is the purpose of the LED indicator on the front of the camera?
LE 20x / 2xx - How do I integrate the live stream of my camera into my XT alarm panel?
Since firmware 3.0 the XT features a network search option. Simply start the network search in the menu "Smarthome" → "Camera", select your camera, and enter username and password.
A video manual (currently only in German) can be found hier.
Old method
NO LONGER NECESSARY WITH LATEST FIRMWARE
Open the menu "Network" -> "Cameras" in your XT alarm panel.
Enter a name for the camera and the following link and fill in the place holders.http://USERNAME:PASSWORD@IP-ADDRESS-OF-THE-CAMERA:PORT/cgi-bin/mjpg/video.cgi?channel=0&subtype=1
Beginning with the firmware with built date (10.8.2018), the following command is also possible (required for Chrome / Opera):
http://IP-ADDRESSE:PORT/cgi-bin/mjpg/video.cgi?channel=0&subtype=1&user=BENUTZERNAME&password=PASSWORTlast updated - 09/26/2025 last updated - 09/26/2025 last updated - 09/26/2025 last updated - 09/26/2025 Show all FAQ's - Reviews
-
There are currently no product reviews.
